ASA IPsec Tunnel Configuration with IKEv2: A Comprehensive Guide

Oct 27, 2025 by sorusgentrification.com 95 views

ASA IPsec Tunnel Configuration with IKEv2: A Comprehensive Guide

In today’s interconnected world, securing network communications is paramount. IPsec tunnels provide a crucial layer of protection for data traversing untrusted networks. Cisco Adaptive Security Appliance (ASA) firewalls are widely deployed for their robust security features, and this guide focuses on configuring IPsec tunnels on an ASA using the Internet Key Exchange version 2 (IKEv2) protocol. IKEv2 offers several advantages over its predecessor, IKEv1, including improved security, faster negotiation, and better support for mobile devices. This article provides a detailed, step-by-step approach to configuring an ASA IPsec tunnel with IKEv2, covering everything from the initial configuration to advanced troubleshooting techniques. Whether you’re a seasoned network engineer or just starting your journey into network security, this guide will equip you with the knowledge and skills necessary to establish secure and reliable VPN connections using ASA firewalls and IKEv2.

Understanding IPsec and IKEv2

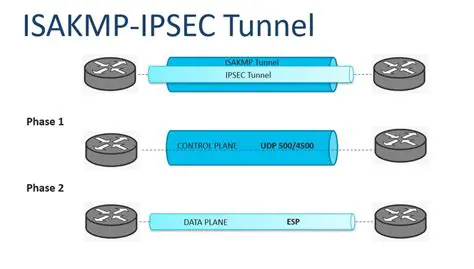

Before diving into the configuration process, it’s essential to understand the underlying technologies. IPsec, or Internet Protocol Security, is a suite of protocols used to secure IP communications by authenticating and encrypting each IP packet of a communication session. IPsec operates at the network layer (Layer 3) of the OSI model and provides security services such as confidentiality, integrity, authentication, and anti-replay protection. It employs two main protocols: Authentication Header (AH) and Encapsulating Security Payload (ESP). AH provides data integrity and authentication, while ESP provides encryption and optional authentication. IPsec can be used in two modes: transport mode and tunnel mode. In transport mode, only the payload of the IP packet is encrypted, while in tunnel mode, the entire IP packet is encapsulated and encrypted, creating a secure tunnel between two endpoints. IKEv2, on the other hand, is the protocol responsible for establishing and maintaining the IPsec security associations (SAs). It handles the key exchange, authentication, and negotiation of security parameters between the VPN endpoints. IKEv2 offers several improvements over IKEv1, including a simpler message exchange, better support for NAT traversal, and improved resilience to network disruptions. Furthermore, IKEv2 uses a stateful handshake, which makes it more secure against man-in-the-middle attacks. It also supports Extensible Authentication Protocol (EAP) methods, providing more flexible authentication options. Choosing IKEv2 over IKEv1 is generally recommended for new deployments due to its enhanced security and performance characteristics.

Pre-Configuration Steps

Before configuring the ASA for an IPsec IKEv2 tunnel, it’s crucial to gather the necessary information and plan your configuration. This section outlines the key steps to take before starting the actual configuration process. First, you need to determine the network topology and addressing scheme. Identify the private networks behind each ASA that will be communicating through the tunnel. Note the public IP addresses of both ASA firewalls, as these will be used to establish the VPN connection. Next, decide on the encryption and authentication algorithms to use. Common choices include AES (Advanced Encryption Standard) for encryption and SHA (Secure Hash Algorithm) for authentication. Ensure that both ASA firewalls support the chosen algorithms. It’s critical to choose strong and modern cryptographic algorithms to ensure the security of your VPN tunnel. Older algorithms like DES or MD5 should be avoided due to their known vulnerabilities. Also, plan the IPsec policies, including the lifetime of the security associations (SAs). The SA lifetime determines how long the IPsec tunnel will remain active before requiring re-keying. A shorter lifetime provides better security but requires more frequent key exchanges, which can impact performance. A longer lifetime reduces the overhead of key exchanges but may increase the risk of compromise. Consider a balanced approach, typically with a lifetime of 3600 seconds (1 hour). Finally, ensure that there is proper routing in place to direct traffic destined for the remote network through the IPsec tunnel. This may involve configuring static routes or dynamic routing protocols on the ASA firewalls.

ASA Configuration: Step-by-Step Guide

This section provides a step-by-step guide to configuring an IPsec IKEv2 tunnel on the ASA firewall. Follow these instructions carefully to ensure a successful configuration. The initial step involves configuring the IKEv2 policy. The IKEv2 policy defines the encryption, authentication, and Diffie-Hellman group settings used for the IKEv2 negotiation. Use the crypto ikev2 policy command to create an IKEv2 policy with the desired parameters. For example:

crypto ikev2 policy 10
 encryption aes-256
 integrity sha512
 group 14
 prf sha512
 lifetime seconds 86400

This policy specifies AES-256 encryption, SHA512 integrity, Diffie-Hellman group 14, SHA512 pseudo-random function (PRF), and a lifetime of 86400 seconds (24 hours). Next, configure the IKEv2 keyring. The keyring stores the pre-shared key or certificate used for authenticating the VPN peers. Use the crypto ikev2 keyring command to create a keyring and specify the peer IP address and authentication method. For example:

crypto ikev2 keyring mykeyring
 peer 192.168.1.2
 address 192.168.1.2
 pre-shared-key mysecretkey

Replace 192.168.1.2 with the public IP address of the remote ASA firewall and mysecretkey with a strong, randomly generated pre-shared key. Alternatively, you can use certificates for authentication, which provides a more secure and scalable solution. After the keyring configuration, define the IPsec proposal. The IPsec proposal defines the encryption and authentication algorithms used for the IPsec SA. Use the crypto ipsec ikev2 ipsec-proposal command to create an IPsec proposal with the desired parameters. For example:

crypto ipsec ikev2 ipsec-proposal myproposal
 protocol esp encryption aes-256
 protocol esp integrity sha512

This proposal specifies AES-256 encryption and SHA512 integrity for the ESP protocol. Then, create the crypto map. The crypto map binds together the IKEv2 policy, keyring, IPsec proposal, and traffic selectors. Use the crypto map command to create a crypto map and associate it with the appropriate interface. For example:

crypto map mymap 10 match address myacl
 crypto map mymap 10 set ikev2 policy 10
 crypto map mymap 10 set ikev2 keyring mykeyring
 crypto map mymap 10 set ipsec ikev2 ipsec-proposal myproposal
 interface GigabitEthernet0/0
 crypto map mymap

Replace GigabitEthernet0/0 with the name of the interface that connects to the public network. Finally, configure the access control list (ACL) to define the traffic that should be encrypted and protected by the IPsec tunnel. Use the access-list command to create an ACL that matches the traffic between the private networks behind the ASA firewalls. For example:

access-list myacl extended permit ip 10.1.1.0 255.255.255.0 10.2.2.0 255.255.255.0

This ACL permits traffic between the 10.1.1.0/24 and 10.2.2.0/24 networks. Remember to adjust the IP addresses and subnet masks to match your specific network configuration. Also, remember to configure the same on the other side of the ASA firewall as well.

Advanced Configuration Options

Beyond the basic configuration, several advanced options can be configured to fine-tune the IPsec IKEv2 tunnel and optimize its performance and security. One such option is configuring Perfect Forward Secrecy (PFS). PFS ensures that even if the keys used to encrypt the IPsec tunnel are compromised, past communications remain secure. This is achieved by generating a new Diffie-Hellman key exchange for each IPsec SA. To enable PFS, add the pfs keyword to the crypto ipsec ikev2 ipsec-proposal command. For example:

crypto ipsec ikev2 ipsec-proposal myproposal
 protocol esp encryption aes-256
 protocol esp integrity sha512
 pfs group14

Another advanced option is configuring NAT traversal (NAT-T). NAT-T allows IPsec tunnels to function correctly when one or both ASA firewalls are behind a NAT device. NAT-T encapsulates the IPsec packets within UDP, which can be easily traversed by NAT devices. NAT-T is enabled by default on most ASA firewalls, but it can be explicitly configured using the crypto ikev2 nat-traversal command. In addition, consider configuring Dead Peer Detection (DPD). DPD allows the ASA to detect when the remote peer is no longer reachable and automatically tear down the IPsec tunnel. DPD helps to prevent stale security associations and improve the overall reliability of the VPN connection. DPD is enabled by default, but it can be configured using the crypto ikev2 dpd command. It’s important to note that improper configuration of these advanced options can lead to connectivity issues or security vulnerabilities. Always test your configuration thoroughly before deploying it in a production environment.

Troubleshooting Common Issues

Even with careful planning and configuration, issues can sometimes arise when setting up an ASA IPsec IKEv2 tunnel. This section provides troubleshooting tips for resolving common problems. One common issue is IKEv2 negotiation failures. These failures can be caused by various factors, such as mismatched IKEv2 policies, incorrect pre-shared keys, or network connectivity problems. To troubleshoot IKEv2 negotiation failures, use the debug crypto ikev2 command to view detailed debugging information about the IKEv2 exchange. This can help identify the specific cause of the failure. Another common issue is IPsec SA establishment failures. These failures can be caused by mismatched IPsec proposals, incorrect ACLs, or routing problems. Use the debug crypto ipsec command to view detailed debugging information about the IPsec SA establishment process. This can help identify the specific cause of the failure. Always verify that the ACLs are correctly configured to permit traffic between the private networks behind the ASA firewalls. Ensure that there are no conflicting ACLs that may be blocking the IPsec traffic. Check the routing configuration on both ASA firewalls to ensure that traffic destined for the remote network is being routed through the IPsec tunnel. Use the show route command to verify the routing table. Also, verify the status of the IPsec tunnel using the show crypto ikev2 sa and show crypto ipsec sa commands. These commands display information about the established IKEv2 and IPsec SAs, including their status, encryption algorithms, and lifetimes. If the tunnel is not established, these commands can provide clues about the cause of the problem. Finally, remember to check the ASA system logs for any error messages or warnings that may indicate the cause of the problem. The logs can provide valuable insights into the operation of the ASA and can help pinpoint the source of the issue.

Best Practices for ASA IPsec IKEv2 Tunnel Configuration

To ensure the security, reliability, and performance of your ASA IPsec IKEv2 tunnel, it’s essential to follow best practices. Start by using strong encryption and authentication algorithms. Choose modern algorithms like AES-256 for encryption and SHA512 for authentication. Avoid using older, weaker algorithms like DES or MD5. Generate strong, randomly generated pre-shared keys. The pre-shared key should be at least 20 characters long and should include a mix of uppercase and lowercase letters, numbers, and special characters. Consider using certificates for authentication instead of pre-shared keys. Certificates provide a more secure and scalable solution for authenticating VPN peers. Implement Perfect Forward Secrecy (PFS) to protect past communications in case the IPsec keys are compromised. Configure Dead Peer Detection (DPD) to detect and tear down stale IPsec tunnels. Regularly review and update your ASA configuration. Keep the ASA software up to date with the latest security patches and bug fixes. Monitor the ASA system logs for any error messages or warnings. Implement a robust security policy that defines the acceptable use of the VPN tunnel and the security requirements for connected devices. Securely store and manage the pre-shared keys or certificates used for authentication. Avoid storing these credentials in plain text or on insecure devices. Finally, test your configuration thoroughly before deploying it in a production environment. Perform regular security audits to identify and address any potential vulnerabilities.

By following these best practices, you can ensure that your ASA IPsec IKEv2 tunnel provides a secure, reliable, and high-performance VPN connection for your organization.
