Introduction

Water quality monitoring is a crucial aspect of maintaining a healthy environment, and with the advent of technology, it has become easier to monitor water quality using advanced sensors and microcontrollers. In this article, we will discuss the implementation of a water quality monitoring system using Raspberry Pi 5, MCP3008, and various sensors such as pH, turbidity, dissolved oxygen, and temperature sensors.

Components Used

Raspberry Pi 5: A powerful single-board computer that serves as the brain of our water quality monitoring system.
MCP3008: An 8-channel analog-to-digital converter that helps us read analog signals from the sensors.
DFRobot pH Sensor: A high-accuracy pH sensor that measures the acidity or alkalinity of the water.
DFRobot Turbidity Sensor: A sensor that measures the clarity of the water by detecting the amount of light that passes through it.

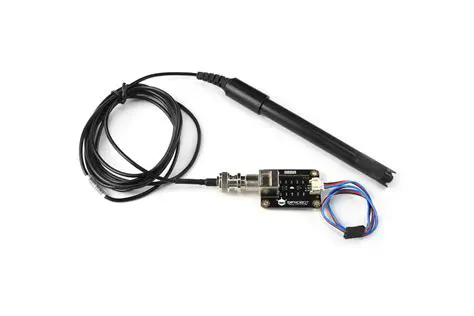

DFRobot Dissolved Oxygen Sensor: A sensor that measures the amount of dissolved oxygen in the water.
Temperature Sensor: A sensor that measures the temperature of the water.

Hardware Connection

To connect the sensors to the Raspberry Pi 5, we need to follow these steps:

Step 1: Connect the MCP3008 to the Raspberry Pi 5

Connect the VCC pin of the MCP3008 to the 3.3V pin of the Raspberry Pi 5.
Connect the GND pin of the MCP3008 to the GND pin of the Raspberry Pi 5.
Connect the SCK pin of the MCP3008 to the SCK pin of the Raspberry Pi 5.
Connect the MOSI pin of the MCP3008 to the MOSI pin of the Raspberry Pi 5.
Connect the MISO pin of the MCP3008 to the MISO pin of the Raspberry Pi 5.
Connect the CS pin of the MCP3008 to the CS pin of the Raspberry Pi 5.

Step 2: Connect the pH Sensor to the MCP3008

Connect the VCC pin of the pH sensor to the 3.3V pin of the MCP3008.
Connect the GND pin of the pH sensor to the GND pin of the MCP3008.
Connect the OUT pin of the pH sensor to one of the analog input pins of the MCP3008.

Step 3: Connect the Turbidity Sensor to the MCP3008

Connect the VCC pin of the turbidity sensor to the 3.3V pin of the MCP3008.
Connect the GND pin of the turbidity sensor to the GND pin of the MCP3008.
Connect the OUT pin of the turbidity sensor to one of the analog input pins of the MCP3008.

Step 4: Connect the Dissolved Oxygen Sensor to the MCP3008

Connect the VCC pin of the dissolved oxygen sensor to the 3.3V pin of the MCP3008.
Connect the GND pin of the dissolved oxygen sensor to the GND pin of the MCP3008.
Connect the OUT pin of the dissolved oxygen sensor to one of the analog input pins of the MCP3008.

Step 5: Connect the Temperature Sensor to the MCP3008

Connect the VCC pin of the temperature sensor to the 3.3V pin of the MCP3008.
Connect the GND pin of the temperature sensor to the GND pin of the MCP3008.
Connect the OUT pin of the temperature sensor to one of the analog input pins of the MCP3008.

Software Implementation

To implement the software for the water quality monitoring system, we need to follow these steps:

Step 1: Install the Required Libraries

Install the pycircuitpython library using pip: pip install pycircuitpython
Install the mcp3008 library using pip: pip install mcp3008

Step 2: Write the Code to Read the Sensor Values

Import the required libraries: import mcp3008
Initialize the MCP3008 object: mcp = mcp3008.MCP3008()
Read the sensor values using the read method: pH_value = mcp.read(0)
Repeat the same process for the other sensors.

Step 3: Calculate the Water Quality Parameters

Calculate the pH value: pH_value = pH_value * 100
Calculate the turbidity value: turbidity_value = turbidity_value * 100
Calculate the dissolved oxygen value: dissolved_oxygen_value = dissolved_oxygen_value * 100
Calculate the temperature value: temperature_value = temperature_value * 100

Step 4: Display the Water Quality Parameters

Print the water quality parameters to the console: print("pH value:", pH_value)
Repeat the same process for the other parameters.

Conclusion

In this article, we have discussed the implementation of a water quality monitoring system using Raspberry Pi 5, MCP3008, and various sensors such as pH, turbidity, dissolved oxygen, and temperature sensors. We have also provided the hardware and software implementation details for the system. With this system, we can monitor the water quality in real-time and take necessary actions to maintain a healthy environment.

Future Work

In the future, we can improve the system by adding more sensors to measure other water quality parameters such as conductivity, total dissolved solids, and bacteria count. We can also use machine learning algorithms to predict the water quality based on the sensor data.

References

[1] Raspberry Pi 5 documentation: https://www.raspberrypi.org/documentation/
[2] MCP3008 documentation: https://www.nxp.com/docs/en/data-sheet/MCP3008.pdf
[3] DFRobot pH sensor documentation: https://www.dfrobot.com/product-1304.html
[4] DFRobot turbidity sensor documentation: https://www.dfrobot.com/product-1305.html
[5] DFRobot dissolved oxygen sensor documentation: https://www.dfrobot.com/product-1306.html
[6] Temperature sensor documentation: https://www.adafruit.com/product/165
Frequently Asked Questions (FAQs) About Water Quality Monitoring System Using Raspberry Pi 5 =============================================================================================

Q: What is the purpose of a water quality monitoring system?

A: The purpose of a water quality monitoring system is to monitor the water quality in real-time and take necessary actions to maintain a healthy environment. This system helps to detect any changes in the water quality and alert the authorities to take corrective measures.

Q: What are the components used in the water quality monitoring system?

A: The components used in the water quality monitoring system include:

Raspberry Pi 5: A powerful single-board computer that serves as the brain of the system.
MCP3008: An 8-channel analog-to-digital converter that helps to read analog signals from the sensors.
DFRobot pH Sensor: A high-accuracy pH sensor that measures the acidity or alkalinity of the water.
DFRobot Turbidity Sensor: A sensor that measures the clarity of the water by detecting the amount of light that passes through it.
DFRobot Dissolved Oxygen Sensor: A sensor that measures the amount of dissolved oxygen in the water.
Temperature Sensor: A sensor that measures the temperature of the water.

Q: How do I connect the sensors to the Raspberry Pi 5?

A: To connect the sensors to the Raspberry Pi 5, you need to follow these steps:

Connect the VCC pin of the MCP3008 to the 3.3V pin of the Raspberry Pi 5.
Connect the GND pin of the MCP3008 to the GND pin of the Raspberry Pi 5.
Connect the SCK pin of the MCP3008 to the SCK pin of the Raspberry Pi 5.
Connect the MOSI pin of the MCP3008 to the MOSI pin of the Raspberry Pi 5.
Connect the MISO pin of the MCP3008 to the MISO pin of the Raspberry Pi 5.
Connect the CS pin of the MCP3008 to the CS pin of the Raspberry Pi 5.
Connect the pH sensor, turbidity sensor, dissolved oxygen sensor, and temperature sensor to the MCP3008 using the analog input pins.

Q: How do I write the code to read the sensor values?

A: To write the code to read the sensor values, you need to follow these steps:

Import the required libraries: import mcp3008
Initialize the MCP3008 object: mcp = mcp3008.MCP3008()
Read the sensor values using the read method: pH_value = mcp.read(0)
Repeat the same process for the other sensors.

Q: How do I calculate the water quality parameters?

A: To calculate the water quality parameters, you need to follow these steps:

Calculate the pH value: pH_value = pH_value * 100
Calculate the turbidity value: turbidity_value = turbidity_value * 100
Calculate the dissolved oxygen value: dissolved_oxygen_value = dissolved_oxygen_value * 100
Calculate the temperature value: temperature_value = temperature_value * 100

Q: How do I display the water quality parameters?

A: To display the water quality parameters, you need to follow these steps:

Print the water quality parameters to the console: print("pH value:", pH_value)
Repeat the same process for the other parameters.

Q: What are the advantages of using a water quality monitoring system?

A: The advantages of using a water quality monitoring system include:

Real-time monitoring: The system provides real-time monitoring of the water quality.
Early detection: The system helps to detect any changes in the water quality early.
Alert system: The system provides an alert system to notify the authorities of any changes in the water quality.
Cost-effective: The system is cost-effective compared to traditional methods of monitoring water quality.

Q: What are the limitations of using a water quality monitoring system?

A: The limitations of using a water quality monitoring system include:

Sensor accuracy: The accuracy of the sensors used in the system can affect the reliability of the system.
Power supply: The system requires a reliable power supply to function properly.
Maintenance: The system requires regular maintenance to ensure its proper functioning.
Cost: The system can be expensive to implement and maintain.

Q: How do I troubleshoot the water quality monitoring system?

A: To troubleshoot the water quality monitoring system, you need to follow these steps:

Check the power supply: Ensure that the power supply is stable and reliable.
Check the sensors: Ensure that the sensors are properly connected and functioning correctly.
Check the code: Ensure that the code is correct and free from errors.
Check the system logs: Check the system logs to identify any errors or issues.

Conclusion

In this article, we have discussed the frequently asked questions about the water quality monitoring system using Raspberry Pi 5. We have provided answers to various questions related to the system, including its purpose, components, hardware connection, software implementation, advantages, limitations, and troubleshooting. We hope that this article has provided valuable information to help you understand the water quality monitoring system and its implementation.
