Troubleshooting “Error Start PXE over IPv4”: A Comprehensive Guide

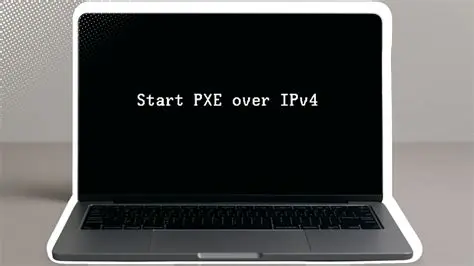

Encountering the frustrating “Error Start PXE over IPv4” message during boot can halt your system and leave you wondering what went wrong. This error typically indicates that your computer is attempting to boot from the network using the Preboot Execution Environment (PXE) protocol over IPv4, but the process is failing. This can occur for various reasons, ranging from incorrect BIOS settings to network connectivity issues. This comprehensive guide will walk you through the common causes of this error and provide detailed troubleshooting steps to get your system booting correctly.

Understanding PXE Boot and Its Purpose

Before diving into troubleshooting, it’s crucial to understand what PXE boot is and why your system might be attempting it. PXE boot allows a computer to boot from a network location instead of a local hard drive or SSD. This is often used in enterprise environments for deploying operating systems, performing system recovery, or running diagnostic tools. Administrators can centrally manage and deploy software to multiple machines simultaneously. However, if the PXE boot process encounters issues, such as an unavailable server or incorrect network configuration, the “Error Start PXE over IPv4” message will appear. This process relies on the computer contacting a DHCP server on the network to obtain an IP address and then contacting a TFTP server to download the boot image. Failure at any of these stages can result in the error.

Common Causes of the “Error Start PXE over IPv4” Message

Several factors can contribute to the “Error Start PXE over IPv4” error. Identifying the root cause is the first step in resolving the issue. Here are some of the most common culprits:

Incorrect Boot Order in BIOS/UEFI: The BIOS or UEFI settings determine the order in which your computer attempts to boot from different devices. If network boot (PXE) is prioritized over your hard drive or SSD, the system will attempt to boot from the network first. If no PXE server is found or the process fails, you’ll see the error message. Ensuring the correct boot order is crucial.
Network Connectivity Issues: A faulty network cable, a disconnected network adapter, or a problem with your network switch or router can prevent your computer from establishing a network connection, thus hindering the PXE boot process. Verify that your network cable is securely connected to both your computer and the network outlet.
DHCP Server Problems: The DHCP server is responsible for assigning IP addresses to devices on your network. If the DHCP server is unavailable, misconfigured, or experiencing issues, your computer won’t be able to obtain an IP address, and the PXE boot process will fail. Check the DHCP server’s status and configuration.
PXE Server Issues: If you are intentionally using PXE boot in your environment, a problem with the PXE server itself can cause the error. This could include the server being offline, incorrectly configured, or having issues serving the boot image.
Hardware Problems: In rare cases, a faulty network adapter or other hardware component could be responsible for the error. This is especially likely if you’ve recently experienced hardware issues or made changes to your system.

Troubleshooting Steps to Resolve the Error

Now that you understand the potential causes, let’s explore the troubleshooting steps you can take to resolve the “Error Start PXE over IPv4” message. These steps are organized from the simplest to the more complex, so it’s recommended to follow them in order.

1. Verify Boot Order in BIOS/UEFI

The first and often easiest solution is to check your BIOS/UEFI settings and ensure that your hard drive or SSD is set as the primary boot device. Here’s how:

Restart your computer.
Enter the BIOS/UEFI setup: The key to enter the BIOS/UEFI setup varies depending on your computer manufacturer. Common keys include Delete, F2, F12, Esc, or F10. The specific key is usually displayed briefly during the boot process.
Navigate to the Boot Order or Boot Priority settings: The location of these settings varies depending on your BIOS/UEFI version. Look for options like “Boot Order,” “Boot Priority,” or “Boot Sequence.”
Change the boot order: Use the arrow keys to select your hard drive or SSD and move it to the top of the list. This will ensure that your computer attempts to boot from your local storage first.
Save your changes and exit: Press the appropriate key (usually F10) to save your changes and exit the BIOS/UEFI setup. Your computer should now boot from your hard drive or SSD.

2. Check Network Connectivity

Ensuring a stable network connection is essential for PXE boot, but also for normal operation. Follow these steps to troubleshoot network connectivity issues:

Check the network cable: Make sure the network cable is securely plugged into both your computer and the network outlet. Try using a different network cable to rule out a faulty cable.
Test the network port: Connect a different device (e.g., another computer or a laptop) to the same network port. If the other device can connect to the network, the problem may be with your computer’s network adapter.
Restart your network devices: Restart your router, switch, and modem. This can resolve temporary network glitches.
Check your network adapter: Ensure that your network adapter is enabled in your operating system. In Windows, you can do this by going to Network Connections in the Control Panel. Verify also that the network interface is enabled in your BIOS/UEFI.

3. Investigate DHCP Server Issues

If your computer is unable to obtain an IP address from the DHCP server, it won’t be able to proceed with the PXE boot process. Here’s how to troubleshoot DHCP server issues:

Check the DHCP server’s status: Ensure that the DHCP server is running and functioning correctly. This may involve logging into the server and checking its logs.
Verify DHCP server configuration: Make sure the DHCP server is properly configured to assign IP addresses to devices on your network. Check the IP address range, subnet mask, and other settings.
Restart the DHCP server: Restarting the DHCP server can often resolve temporary issues.
Check for IP address conflicts: If another device on your network is using the same IP address as your computer, it can cause DHCP issues. Try releasing and renewing your IP address on your computer. In Windows, you can do this by opening a command prompt and running the commands ipconfig /release and ipconfig /renew.

4. Examine PXE Server Configuration (If Applicable)

If you are intentionally using PXE boot in your environment, you’ll need to verify the PXE server’s configuration and ensure that it’s functioning correctly. These steps are more complex and require a deeper understanding of PXE boot setup. The configuration will be specific to the software you’re using, but here are some general areas to investigate:

Verify the PXE server is running: Check that the PXE server service is running and that there are no errors in the server logs.
Check the TFTP server: PXE boot relies on TFTP (Trivial File Transfer Protocol) to deliver the boot image. Ensure that the TFTP server is running and that the boot image file is accessible.
Verify DHCP options: The DHCP server needs to be configured with the correct options to direct clients to the PXE server. This typically involves setting options 66 (Boot Server Host Name) and 67 (Bootfile Name).
Check firewall settings: Ensure that your firewall is not blocking the necessary ports for PXE boot (typically UDP ports 67, 68, and 69).

5. Hardware Diagnostics

In rare cases, a hardware problem with your network adapter or other system component could be causing the “Error Start PXE over IPv4” message. Here are some steps you can take to diagnose hardware issues:

Run hardware diagnostics: Many computers have built-in hardware diagnostics tools that can test the functionality of your network adapter and other components. Consult your computer’s manual for instructions on how to run these diagnostics.
Try a different network adapter: If possible, try using a different network adapter to see if that resolves the issue. This could involve using a USB network adapter or installing a different internal network card.
Check for physical damage: Inspect your network adapter and other components for any signs of physical damage, such as broken connectors or bent pins.

Preventing Future PXE Boot Errors

Once you’ve resolved the “Error Start PXE over IPv4” message, it’s a good idea to take steps to prevent it from happening again. Here are some preventative measures you can take:

Keep your BIOS/UEFI up to date: Regularly update your BIOS/UEFI to the latest version. Updates often include bug fixes and improved compatibility with hardware and software.
Maintain a stable network environment: Ensure that your network is stable and reliable. This includes using high-quality network cables, keeping your network devices up to date, and monitoring your network for performance issues.
Properly configure your DHCP server: Ensure that your DHCP server is properly configured and that it’s assigning IP addresses correctly. Regularly review your DHCP server settings and make sure they are appropriate for your network environment.
Document your PXE boot setup (if applicable): If you are using PXE boot in your environment, document your setup thoroughly. This will make it easier to troubleshoot issues in the future.

Conclusion

The “Error Start PXE over IPv4” message can be a frustrating issue, but by systematically following the troubleshooting steps outlined in this guide, you can identify the root cause and resolve the problem. Remember to start with the simplest solutions, such as checking the boot order and network connectivity, and then move on to more complex troubleshooting steps if necessary. By understanding the potential causes of this error and taking preventative measures, you can ensure that your system boots correctly and avoid future PXE boot issues. Good luck troubleshooting!
