Graphing Vertical and Horizontal Asymptotes

Oct 13, 2025 by sorusgentrification.com 21 views

Introduction

Rational functions are a type of function that can be expressed as the ratio of two polynomials. These functions can have various types of asymptotes, including vertical and horizontal asymptotes. In this article, we will discuss how to graph vertical and horizontal asymptotes of rational functions.

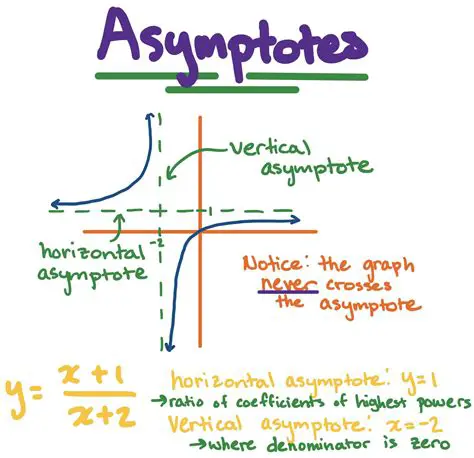

What are Asymptotes?

Asymptotes are lines or curves that a function approaches as the input (or independent variable) gets arbitrarily close to a certain value. In the case of rational functions, asymptotes can be either vertical or horizontal.

Vertical Asymptotes

Vertical asymptotes occur when the denominator of a rational function is equal to zero. This is because division by zero is undefined, so the function will approach infinity as the input gets arbitrarily close to the value that makes the denominator zero.

To find the vertical asymptotes of a rational function, we need to set the denominator equal to zero and solve for the input variable. In the case of the function ${ f(x) = \frac{3x^2 - 6x + 3}{2x^2 + 5} }$ , we can set the denominator equal to zero and solve for x:

${ 2x^2 + 5 = 0 }$

However, this equation has no real solutions, so there are no vertical asymptotes in this case.

Horizontal Asymptotes

Horizontal asymptotes occur when the degree of the numerator is less than or equal to the degree of the denominator. In this case, the function will approach a horizontal line as the input gets arbitrarily close to infinity.

To find the horizontal asymptotes of a rational function, we need to compare the degrees of the numerator and denominator. If the degree of the numerator is less than the degree of the denominator, the horizontal asymptote is y = 0. If the degree of the numerator is equal to the degree of the denominator, the horizontal asymptote is the ratio of the leading coefficients.

In the case of the function ${ f(x) = \frac{3x^2 - 6x + 3}{2x^2 + 5} }$ , the degree of the numerator is 2 and the degree of the denominator is 2, so the horizontal asymptote is the ratio of the leading coefficients:

${ \frac{3}{2} }$

Graphing Vertical and Horizontal Asymptotes

To graph the vertical and horizontal asymptotes of a rational function, we need to plot the asymptotes on a coordinate plane. The vertical asymptotes are represented by vertical lines, while the horizontal asymptote is represented by a horizontal line.

In the case of the function ${ f(x) = \frac{3x^2 - 6x + 3}{2x^2 + 5} }$ , there are no vertical asymptotes, but there is a horizontal asymptote at y = \frac{3}{2}.

Conclusion

In conclusion, graphing vertical and horizontal asymptotes of rational functions is an important step in understanding the behavior of these functions. By identifying the asymptotes, we can gain insight into the function's behavior as the input gets arbitrarily close to certain values.

Example

Let's consider another example of a rational function:

${ f(x) = \frac{x^2 - 4}{x^2 - 4x + 4} }$

To find the vertical asymptotes, we need to set the denominator equal to zero and solve for x:

${ x^2 - 4x + 4 = 0 }$

This equation has a repeated root at x = 2, so there is a vertical asymptote at x = 2.

To find the horizontal asymptote, we need to compare the degrees of the numerator and denominator. In this case, the degree of the numerator is 2 and the degree of the denominator is 2, so the horizontal asymptote is the ratio of the leading coefficients:

${ \frac{1}{1} = 1 }$

Therefore, the graph of the function ${ f(x) = \frac{x^2 - 4}{x^2 - 4x + 4} }$ has a vertical asymptote at x = 2 and a horizontal asymptote at y = 1.

Tips and Tricks

To find the vertical asymptotes of a rational function, set the denominator equal to zero and solve for the input variable.
To find the horizontal asymptotes of a rational function, compare the degrees of the numerator and denominator.
If the degree of the numerator is less than the degree of the denominator, the horizontal asymptote is y = 0.
If the degree of the numerator is equal to the degree of the denominator, the horizontal asymptote is the ratio of the leading coefficients.

Common Mistakes

Failing to identify the vertical asymptotes of a rational function.
Failing to identify the horizontal asymptotes of a rational function.
Not plotting the asymptotes on a coordinate plane.

Conclusion

Q: What is the difference between a vertical and horizontal asymptote?

A: A vertical asymptote is a line that a function approaches as the input (or independent variable) gets arbitrarily close to a certain value, while a horizontal asymptote is a line that a function approaches as the input gets arbitrarily close to infinity.

Q: How do I find the vertical asymptotes of a rational function?

A: To find the vertical asymptotes of a rational function, you need to set the denominator equal to zero and solve for the input variable. This will give you the values of x that make the denominator zero, which are the vertical asymptotes.

Q: How do I find the horizontal asymptotes of a rational function?

A: To find the horizontal asymptotes of a rational function, you need to compare the degrees of the numerator and denominator. If the degree of the numerator is less than the degree of the denominator, the horizontal asymptote is y = 0. If the degree of the numerator is equal to the degree of the denominator, the horizontal asymptote is the ratio of the leading coefficients.

Q: What if the degree of the numerator is greater than the degree of the denominator?

A: If the degree of the numerator is greater than the degree of the denominator, there is no horizontal asymptote. However, you may still have a slant asymptote, which is a line that the function approaches as the input gets arbitrarily close to infinity.

Q: How do I graph the vertical and horizontal asymptotes of a rational function?

A: To graph the vertical and horizontal asymptotes of a rational function, you need to plot the asymptotes on a coordinate plane. The vertical asymptotes are represented by vertical lines, while the horizontal asymptote is represented by a horizontal line.

Q: What if I have a rational function with a repeated root in the denominator?

A: If you have a rational function with a repeated root in the denominator, you will have a vertical asymptote at that value of x. However, the function will approach infinity as the input gets arbitrarily close to that value, but it will not approach a finite value.

Q: Can I have a rational function with no vertical or horizontal asymptotes?

A: Yes, it is possible to have a rational function with no vertical or horizontal asymptotes. This can happen if the denominator is never zero and the degree of the numerator is less than the degree of the denominator.

Q: How do I determine if a rational function has a slant asymptote?

A: To determine if a rational function has a slant asymptote, you need to compare the degrees of the numerator and denominator. If the degree of the numerator is one more than the degree of the denominator, the function will have a slant asymptote.

Q: How do I find the slant asymptote of a rational function?

A: To find the slant asymptote of a rational function, you need to divide the numerator by the denominator using long division or synthetic division. The quotient will be the slant asymptote.

Q: Can I have a rational function with multiple slant asymptotes?

A: No, a rational function can only have one slant asymptote. If the degree of the numerator is greater than the degree of the denominator by more than one, the function will have a horizontal asymptote, not a slant asymptote.

Q: How do I graph the slant asymptote of a rational function?

A: To graph the slant asymptote of a rational function, you need to plot the slant asymptote on a coordinate plane. The slant asymptote is represented by a line with a slope that is the ratio of the leading coefficients of the numerator and denominator.
