Securing Networks with IPsec VPN on Cisco ASA Firewalls

In today’s interconnected world, secure communication is paramount. IPsec VPNs (Internet Protocol Security Virtual Private Networks) offer a robust solution for creating secure tunnels across public networks, like the internet. When implemented on a Cisco Adaptive Security Appliance (ASA) firewall, these VPNs provide a reliable and scalable way to protect sensitive data and enable secure remote access. This article delves into the configuration, troubleshooting, and best practices for implementing IPsec VPNs on Cisco ASA firewalls.

Understanding IPsec VPNs and Cisco ASA

Before diving into the configuration, it’s crucial to understand the core concepts of IPsec VPNs and the role of a Cisco ASA in this context. An IPsec VPN establishes a secure, encrypted tunnel between two endpoints, ensuring confidentiality, integrity, and authenticity of the data transmitted. The Cisco ASA, acting as a security gateway, provides the platform to create and manage these VPN tunnels. It acts as the gatekeeper, verifying the identities of the VPN peers, encrypting and decrypting data, and enforcing security policies.

IPsec itself is a suite of protocols that provides security at the network layer. It operates by encrypting IP packets, adding an authentication header, and encapsulating the original packet within a new IP header. This process ensures that the data is protected from eavesdropping and tampering during transit. Key components of IPsec include Authentication Header (AH), Encapsulating Security Payload (ESP), and Internet Key Exchange (IKE). AH provides data integrity and authentication but does not encrypt the payload. ESP provides both encryption and authentication. IKE is used to establish and negotiate the security associations (SAs) that define the parameters of the VPN tunnel, such as the encryption algorithms and authentication methods to be used. The ASA uses these IPsec technologies to create and manage VPN connections between different networks, or between a remote user and the network.

The Cisco ASA is a versatile security device that offers a wide range of features, including firewalling, intrusion prevention, and VPN services. Its ability to support multiple VPN technologies, including IPsec, makes it a popular choice for organizations of all sizes. When configuring IPsec VPNs on an ASA, it is important to plan the network topology, addressing scheme, and security policies carefully. Incorrect configurations can lead to connectivity issues, security vulnerabilities, and performance degradation. Planning involves determining which networks will be connected via the VPN, assigning IP addresses to the VPN tunnel interfaces, and defining access control rules to regulate traffic flow through the VPN tunnel. Security policies define the encryption and authentication methods used by the VPN and are configured to protect data and authenticate users or devices accessing the network.

Key Components of IPsec VPN Configuration on Cisco ASA

Configuring IPsec VPN on a Cisco ASA involves several key components, each playing a vital role in establishing and maintaining the secure tunnel. These include IKE policies, transform sets, crypto maps, and tunnel groups. Let’s break down each of these elements:

IKE (Internet Key Exchange) Policies: IKE policies define the parameters used for the initial negotiation and authentication of the VPN connection. This includes encryption algorithms (e.g., AES, 3DES), hash algorithms (e.g., SHA-256, SHA-512), authentication methods (e.g., pre-shared key, digital certificates), Diffie-Hellman groups, and the lifetime of the IKE security association (SA). The IKE policy is used during phase 1 of IKE negotiation, which establishes a secure channel for subsequent negotiations. It’s crucial to ensure that the IKE policies are compatible on both sides of the VPN tunnel. For enhanced security, stronger encryption algorithms, hash algorithms, and Diffie-Hellman groups are recommended. This can defend against brute force attacks and other cryptographic vulnerabilities. The lifetime of the IKE SA determines how often the key exchange process is repeated, balancing security and performance. Shorter lifetimes provide greater security but can also increase the overhead of VPN operations.
Transform Sets: Transform sets define the specific IPsec security protocols and algorithms used to protect the data during transmission. This includes the encryption algorithm (e.g., AES, 3DES), the authentication algorithm (e.g., HMAC-SHA1, HMAC-SHA256), and the IPsec protocol (e.g., ESP, AH). The transform set is used during phase 2 of IKE negotiation, which establishes the security association for data transmission. Similar to IKE policies, the transform sets must be compatible on both sides of the VPN tunnel. For optimal security, ESP with a strong encryption algorithm like AES-256 and a robust authentication algorithm like HMAC-SHA256 is recommended. ESP provides both encryption and authentication, protecting the confidentiality and integrity of the data. AH, on the other hand, only provides authentication and is less commonly used due to the lack of encryption. The choice of transform set depends on the security requirements of the application and the performance capabilities of the devices. Organizations should consider their specific needs and threats when selecting the appropriate transform set.
Crypto Maps: Crypto maps link the IKE policies and transform sets to specific traffic flows. They define which traffic should be protected by the IPsec VPN tunnel. Crypto maps are applied to the interfaces of the Cisco ASA and specify the destination network, the peer IP address, and the IKE policy and transform set to be used. When traffic matches the criteria defined in the crypto map, the ASA initiates the IPsec negotiation process and establishes the VPN tunnel. Crypto maps can be configured using access control lists (ACLs) to define the specific traffic to be protected. For example, an ACL can specify that all traffic between two internal networks should be encrypted by the IPsec VPN. The order of crypto map entries is important, as the ASA processes the entries from top to bottom. The first matching entry is used to establish the VPN tunnel. Multiple crypto maps can be configured on the same interface, allowing different traffic flows to be protected by different IPsec VPN tunnels.
Tunnel Groups: Tunnel groups define the settings for the VPN connection, such as the authentication method, IP address assignment, and banner messages. They are used to configure the characteristics of the VPN tunnel and to manage user authentication and authorization. Tunnel groups can be configured for both client-to-site and site-to-site VPN connections. For client-to-site VPNs, tunnel groups define the authentication method (e.g., username/password, digital certificates) and the IP address pool used to assign IP addresses to remote clients. For site-to-site VPNs, tunnel groups define the peer IP address and the pre-shared key or certificate used to authenticate the VPN connection. Banner messages can be configured to display security warnings or legal disclaimers to users connecting to the VPN. Tunnel groups also allow administrators to configure advanced settings, such as split tunneling, which allows users to access both the corporate network and the internet simultaneously.

Step-by-Step Configuration Example

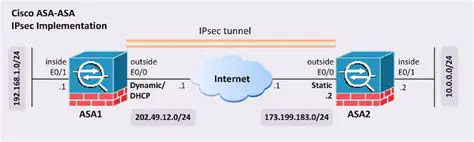

Let’s illustrate the configuration process with a simplified site-to-site IPsec VPN example between two Cisco ASAs. Assume ASA1 has a public IP of 203.0.113.1 and protects network 192.168.1.0/24, while ASA2 has a public IP of 198.51.100.1 and protects network 192.168.2.0/24.

Configuration on ASA1:

Define IKE Policy:

”`asa crypto ikev1 policy 10 authentication pre-share encryption aes 256 hash sha group 2 lifetime 86400


2.  **Define Transform Set:**

    ```asa
crypto ipsec ikev1 transform-set ESP-AES-SHA esp-aes-256 esp-sha-hmac

Configure Tunnel Group:

”`asa tunnel-group 198.51.100.1 type ipsec-l2l tunnel-group 198.51.100.1 ipsec-attributes ikev1 pre-shared-key Cisco123


4.  **Define Crypto Map:**

    ```asa
access-list VPN_TRAFFIC extended permit ip 192.168.1.0 255.255.255.0 192.168.2.0 255.255.255.0
crypto map VPN_MAP 10 match address VPN_TRAFFIC
crypto map VPN_MAP 10 set peer 198.51.100.1
crypto map VPN_MAP 10 set ikev1 transform-set ESP-AES-SHA
crypto map VPN_MAP 10 set ikev1 policy 10

interface GigabitEthernet0/0
 crypto map VPN_MAP

Configuration on ASA2:

Define IKE Policy:

”`asa crypto ikev1 policy 10 authentication pre-share encryption aes 256 hash sha group 2 lifetime 86400


2.  **Define Transform Set:**

    ```asa
crypto ipsec ikev1 transform-set ESP-AES-SHA esp-aes-256 esp-sha-hmac

Configure Tunnel Group:

”`asa tunnel-group 203.0.113.1 type ipsec-l2l tunnel-group 203.0.113.1 ipsec-attributes ikev1 pre-shared-key Cisco123


4.  **Define Crypto Map:**

    ```asa
access-list VPN_TRAFFIC extended permit ip 192.168.2.0 255.255.255.0 192.168.1.0 255.255.255.0
crypto map VPN_MAP 10 match address VPN_TRAFFIC
crypto map VPN_MAP 10 set peer 203.0.113.1
crypto map VPN_MAP 10 set ikev1 transform-set ESP-AES-SHA
crypto map VPN_MAP 10 set ikev1 policy 10

interface GigabitEthernet0/0
 crypto map VPN_MAP

Explanation:

The IKE policy defines the authentication, encryption, and hash algorithms used during the IKE phase 1 negotiation.
The transform set defines the security protocols and algorithms used to protect data during transmission in the IPsec phase 2 negotiation.
The tunnel group configures the pre-shared key and other settings for the IPsec tunnel.
The crypto map associates the IKE policy and transform set with the traffic that should be protected by the VPN tunnel.
The access list defines the traffic that should be encrypted by the VPN.

Troubleshooting IPsec VPNs on Cisco ASA

Even with careful configuration, issues can arise with IPsec VPNs. Effective troubleshooting is essential for maintaining network connectivity. Here are some common problems and their solutions:

IKE Phase 1 Failure: This often indicates a mismatch in IKE policies between the two VPN peers. Verify that the encryption, hash, authentication, and Diffie-Hellman group settings are identical on both sides. Use the show crypto ikev1 sa command to examine the status of IKE security associations.
IKE Phase 2 Failure: This usually points to a mismatch in transform sets or access control lists (ACLs). Ensure the transform sets are compatible on both sides and that the ACLs correctly define the traffic that should be protected by the VPN. Use the show crypto ipsec sa command to check the status of IPsec security associations.
Connectivity Issues: If the VPN tunnel is established but traffic is not flowing, check the routing configuration and firewall rules. Ensure that routes are in place to direct traffic through the VPN tunnel and that firewall rules allow traffic to pass between the networks. Use the traceroute command to trace the path of traffic and identify any bottlenecks.
Performance Degradation: IPsec VPNs can introduce overhead due to encryption and encapsulation. Performance issues can arise from excessive encryption overhead, network congestion, or hardware limitations. Consider using hardware acceleration features on the Cisco ASA to improve performance. Optimize the encryption algorithms and transform sets to balance security and performance. Monitor network traffic and identify any bottlenecks that may be contributing to performance degradation. Consider enabling compression to reduce the amount of data that needs to be transmitted over the VPN tunnel. Regularly update the ASA software to benefit from performance improvements and bug fixes.

Best Practices for IPsec VPN Implementation

Use Strong Encryption: Always prioritize strong encryption algorithms like AES-256 for confidentiality.
Implement Strong Authentication: Utilize strong authentication methods such as digital certificates to prevent unauthorized access.
Regularly Update Firmware: Keep your Cisco ASA firmware up-to-date with the latest security patches.
Monitor VPN Performance: Continuously monitor the VPN tunnel for performance issues and security threats.
Properly Secure Pre-Shared Keys: If using pre-shared keys, ensure they are strong, complex, and rotated regularly. Avoid using default or easily guessable keys. Store pre-shared keys securely and restrict access to authorized personnel only. Consider using a password management system to generate and store pre-shared keys securely. Regularly audit the use of pre-shared keys to identify any potential security vulnerabilities. Consider using digital certificates instead of pre-shared keys for enhanced security and scalability.

By following these best practices and understanding the intricacies of IPsec VPN configuration on Cisco ASA firewalls, organizations can build robust and secure network connections, protecting their valuable data and enabling secure remote access for their users.
